CAMAG® HPTLC System for quantitative analyses (high)

[product-systems]

Complete systems

CAMAG® HPTLC System for quantitative analyses

It includes densitometric evaluation and image documentation, including visionCATS software for control of instruments. Suitable for laboratories with high sample throughput.

Get a consultation

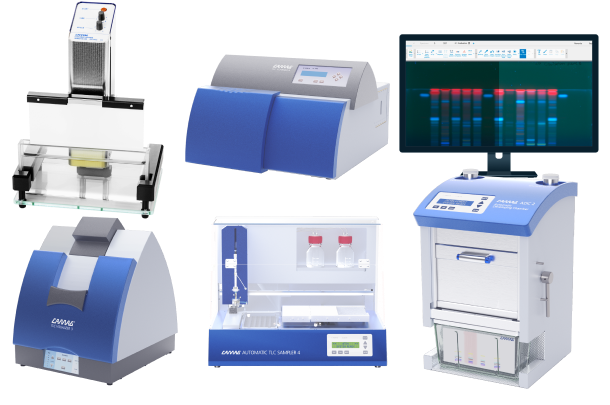

Complete systems quantitative analyses high sample
AUTOMATIC TLC SAMPLER 4 Hero

CAMAG® Automatic TLC Sampler 4 (ATS 4)

Automatic sample application is a key factor for productivity of the HPTLC laboratory. The ATS 4 offers fully automatic sample application for qualitative and quantitative analyses as well as for preparative separations. It is suited for routine use and high sample throughput.

  • Fully automated sample application
  • Application of bands, spots or rectangles
  • Software-controlled by visionCATS
Automatic Developing Chamber 2 Hero

CAMAG® Automatic Developing Chamber 2 (ADC 2)

The ADC 2 offers convenience, safety, and reproducibility for isocratic developments of 20 x 10 cm HPTLC glass plates in full compliance with Ph. Eur. Chapter 2.8.25 and USP Chapter <203>.

  • Fully automated development
  • Development in 20 x 10 cm Twin Trough Chamber
  • Operation in stand-alone mode or software-controlled by visionCATS

CAMAG® Chromatogram Immersion Device 3

The Chromatogram Immersion Device 3 is used for automated dipping. TLC/HPTLC plates are immersed with uniform vertical speed into derivatization reagents or solutions for plate impregnation.

  • Uniform vertical speed test
  • Immersion time selectable
  • The device can be set to accommodate 10 cm and 20 cm plate height
TLC Scanner 4 Hero

CAMAG® TLC Scanner 4

The TLC Scanner 4 is the most advanced workstation for densitometric evaluation of TLC/HPTLC chromatograms and other planar objects.

  • Measurement of reflection, either in absorbance and/or fluorescence
  • Spectral range from 190 to 900 nm
  • Data step resolution 25–200 μm
TLC Visualizer 3 Hero

CAMAG® TLC Visualizer 3

The TLC Visualizer 3 is a high-end imaging and documentation system with superior performance in white light, long-wave UV (366 nm) and short-wave UV (254 nm) ensuring illumination with maximum homogeneity.

  • Maximum illumination homogeneity in white light, UV 366 nm and UV 254 nm
  • High-performance industrial camera with CMOS image sensor
  • Image-based evaluation

CAMAG® HPTLC Software visionCATS

CAMAG’s HPTLC Software visionCATS organizes the workflow of the HPTLC PRO analysis, controls the HPTLC PRO Modules, and manages all data evaluation.

  • Comparison Viewer
  • Image Enhancement Tools
  • HPTLC Method Library
what’s included

Ordering Information

Discover our comprehensive range of packages and make your selection today

Show all packages

Continue reading

CAMAG® HPTLC System for quantitative analyses (low)

[product-systems]

Complete systems

CAMAG® HPTLC System for quantitative analyses

It includes densitometric evaluation and image documentation, including visionCATS software for control of instruments. Suitable for laboratories with low sample throughput.

Get a consultation

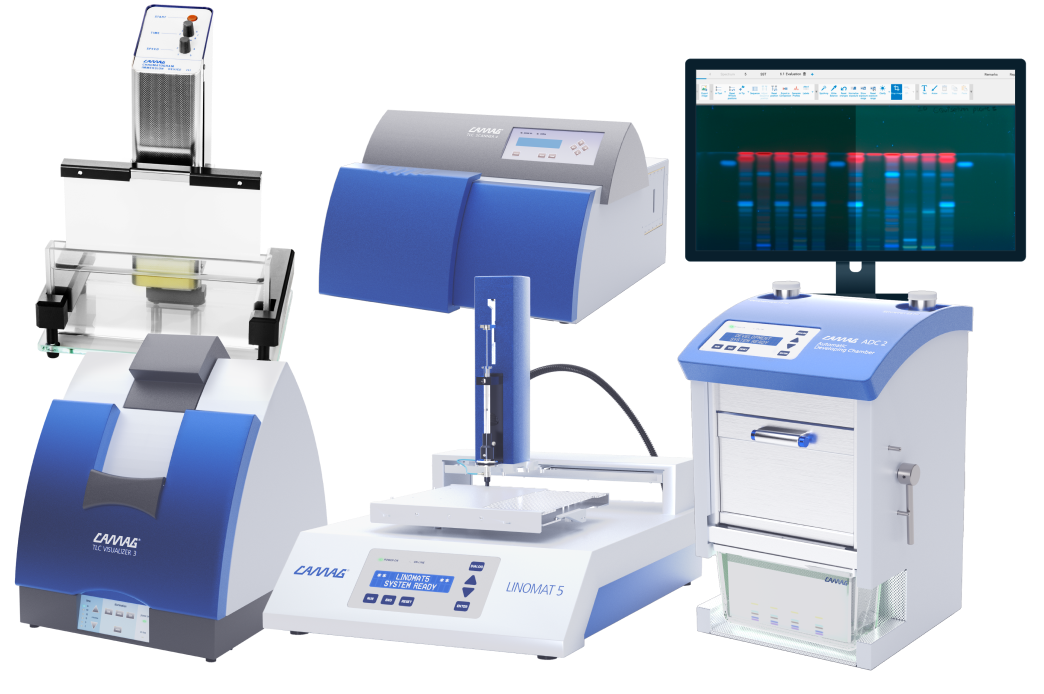

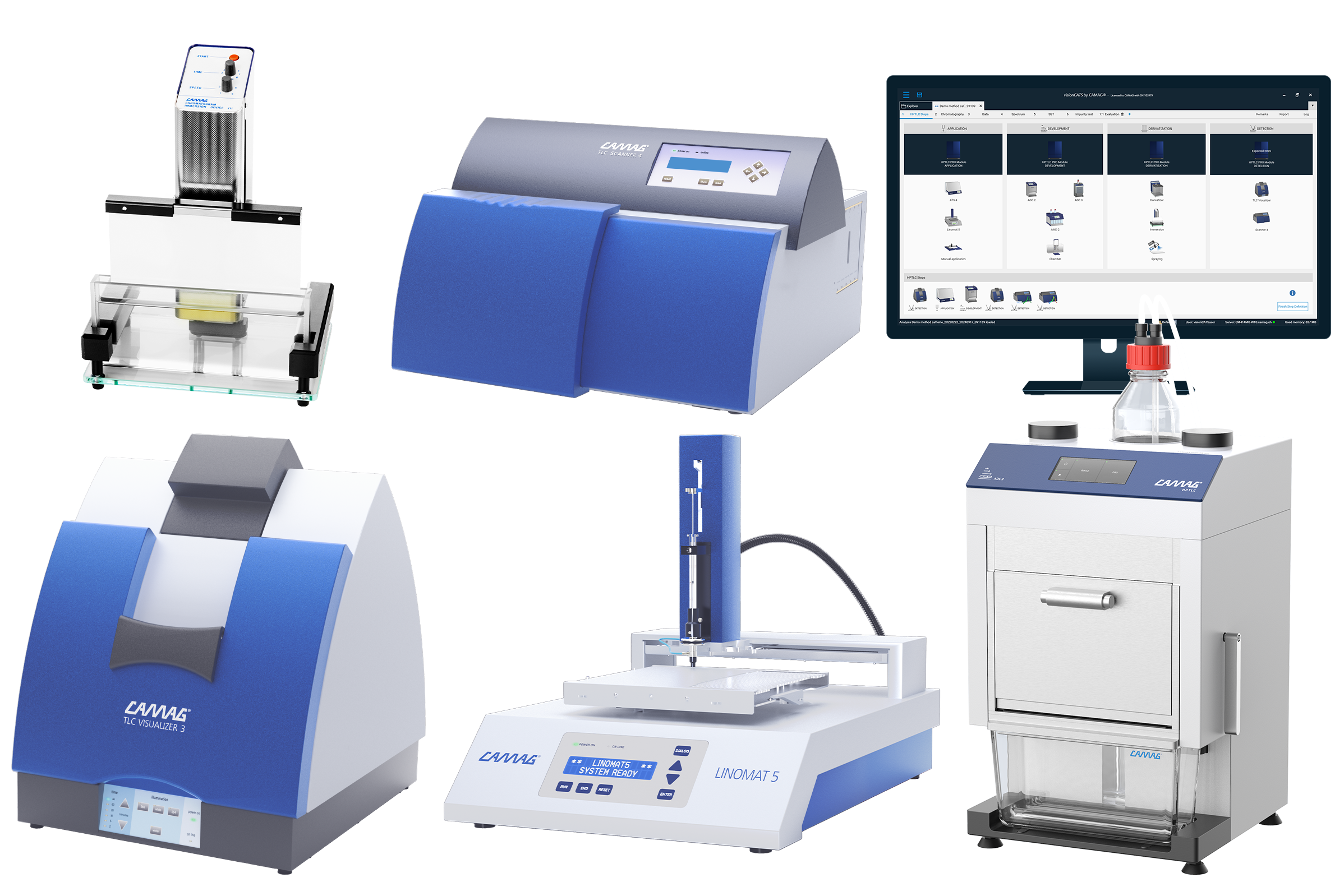

Quantitative analyses (few samples)
Linomat 5 Hero

CAMAG® Linomat 5

With the Linomat 5 samples are sprayed onto TLC/HPTLC plates in the form of bands with nitrogen or compressed air. Application is automatic, only changing the syringe (filling, inserting and rinsing) is manual. The Linomat 5 is suitable for small sample throughput.

  • Semi-automatic application
  • Application of spots or bands
  • Data input through visionCATS software or keypad
Automatic Developing Chamber 2 Hero

CAMAG® Automatic Developing Chamber 2 (ADC 2)

The ADC 2 offers convenience, safety, and reproducibility for isocratic developments of 20 x 10 cm HPTLC glass plates in full compliance with Ph. Eur. Chapter 2.8.25 and USP Chapter <203>.

  • Fully automated development
  • Development in 20 x 10 cm Twin Trough Chamber
  • Operation in stand-alone mode or software-controlled by visionCATS

CAMAG® Chromatogram Immersion Device 3

The Chromatogram Immersion Device 3 is used for automated dipping. TLC/HPTLC plates are immersed with uniform vertical speed into derivatization reagents or solutions for plate impregnation.

  • Uniform vertical speed test
  • Immersion time selectable
  • The device can be set to accommodate 10 cm and 20 cm plate height
TLC Scanner 4 Hero

CAMAG® TLC Scanner 4

The TLC Scanner 4 is the most advanced workstation for densitometric evaluation of TLC/HPTLC chromatograms and other planar objects.

  • Measurement of reflection, either in absorbance and/or fluorescence
  • Spectral range from 190 to 900 nm
  • Data step resolution 25–200 μm
TLC Visualizer 3 Hero

CAMAG® TLC Visualizer 3

The TLC Visualizer 3 is a high-end imaging and documentation system with superior performance in white light, long-wave UV (366 nm) and short-wave UV (254 nm) ensuring illumination with maximum homogeneity.

  • Maximum illumination homogeneity in white light, UV 366 nm and UV 254 nm
  • High-performance industrial camera with CMOS image sensor
  • Image-based evaluation

CAMAG® HPTLC Software visionCATS

CAMAG’s HPTLC Software visionCATS organizes the workflow of the HPTLC PRO analysis, controls the HPTLC PRO Modules, and manages all data evaluation.

  • Comparison Viewer
  • Image Enhancement Tools
  • HPTLC Method Library
what’s included

Ordering Information

Discover our comprehensive range of packages and make your selection today

Show all packages

Continue reading

CAMAG® HPTLC System for qualitative analyses

[product-systems]

Complete systems

CAMAG® HPTLC System for qualitative analyses

Based on image documentation and image-based evaluation, including visionCATS software for control of instruments. Suitable for laboratories dealing with few samples

Get a consultation

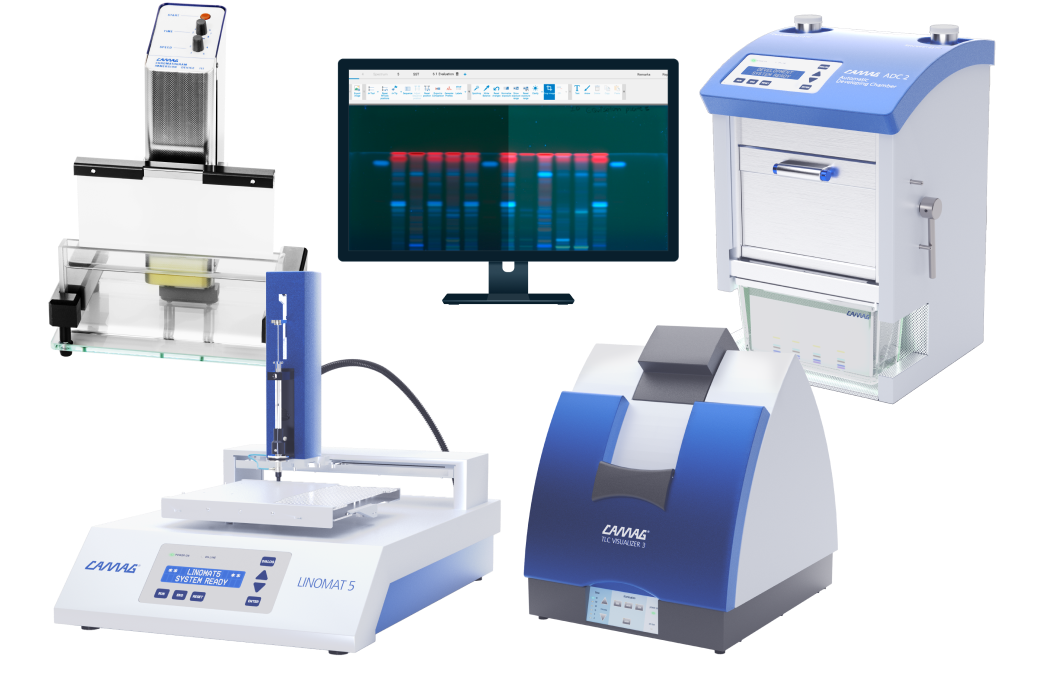

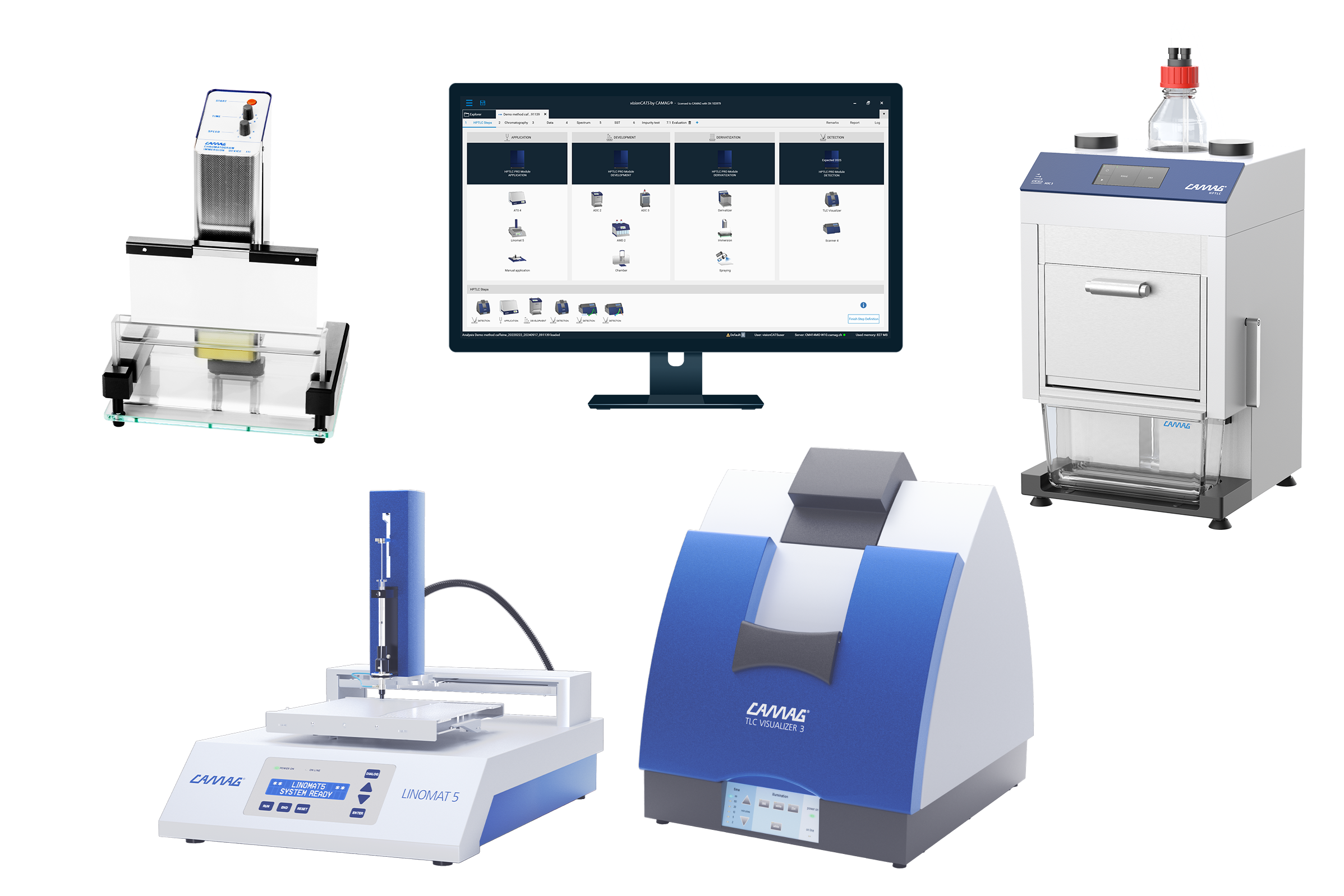

Qualitative analyses
Linomat 5 Hero

CAMAG® Linomat 5

With the Linomat 5 samples are sprayed onto TLC/HPTLC plates in the form of bands with nitrogen or compressed air. Application is automatic, only changing the syringe (filling, inserting and rinsing) is manual. The Linomat 5 is suitable for small sample throughput.

  • Semi-automatic application
  • Application of spots or bands
  • Data input through visionCATS software or keypad
Automatic Developing Chamber 2 Hero

CAMAG® Automatic Developing Chamber 2 (ADC 2)

The ADC 2 offers convenience, safety, and reproducibility for isocratic developments of 20 x 10 cm HPTLC glass plates in full compliance with Ph. Eur. Chapter 2.8.25 and USP Chapter <203>.

  • Fully automated development
  • Development in 20 x 10 cm Twin Trough Chamber
  • Operation in stand-alone mode or software-controlled by visionCATS

CAMAG® Chromatogram Immersion Device 3

The Chromatogram Immersion Device 3 is used for automated dipping. TLC/HPTLC plates are immersed with uniform vertical speed into derivatization reagents or solutions for plate impregnation.

  • Uniform vertical speed test
  • Immersion time selectable
  • The device can be set to accommodate 10 cm and 20 cm plate height
TLC Visualizer 3 Hero

CAMAG® TLC Visualizer 3

The TLC Visualizer 3 is a high-end imaging and documentation system with superior performance in white light, long-wave UV (366 nm) and short-wave UV (254 nm) ensuring illumination with maximum homogeneity.

  • Maximum illumination homogeneity in white light, UV 366 nm and UV 254 nm
  • High-performance industrial camera with CMOS image sensor
  • Image-based evaluation

CAMAG® HPTLC Software visionCATS

CAMAG’s HPTLC Software visionCATS organizes the workflow of the HPTLC PRO analysis, controls the HPTLC PRO Modules, and manages all data evaluation.

  • Comparison Viewer
  • Image Enhancement Tools
  • HPTLC Method Library
what’s included
